TDB-10F blow molding machine

The TDB-10F extrusion blow moulding machine is suitable for producing hollow plastic products size below 10L, and it is often used to produce products that need to put inserts, so the machine’s semi-automatic mode is really suitable, after finished putting the inserts, just press the auto mould close, the production will start again. Very convenient. and it is equipped with bottom blowing unit.The die-head is accumulator type.

Get Quotation Now

Technical Parameters

MODEL Units TDB-10F
Max. Product volume
L
10
Output of HDPE
kg/h
85
Clamping force
kn
95
Screw diametre
mm
70
Screw heating power
kw
13.2
Blow pressure
mpa
0.6
Size of machine
m
4.1*1.9*3
播放视频

Product Details

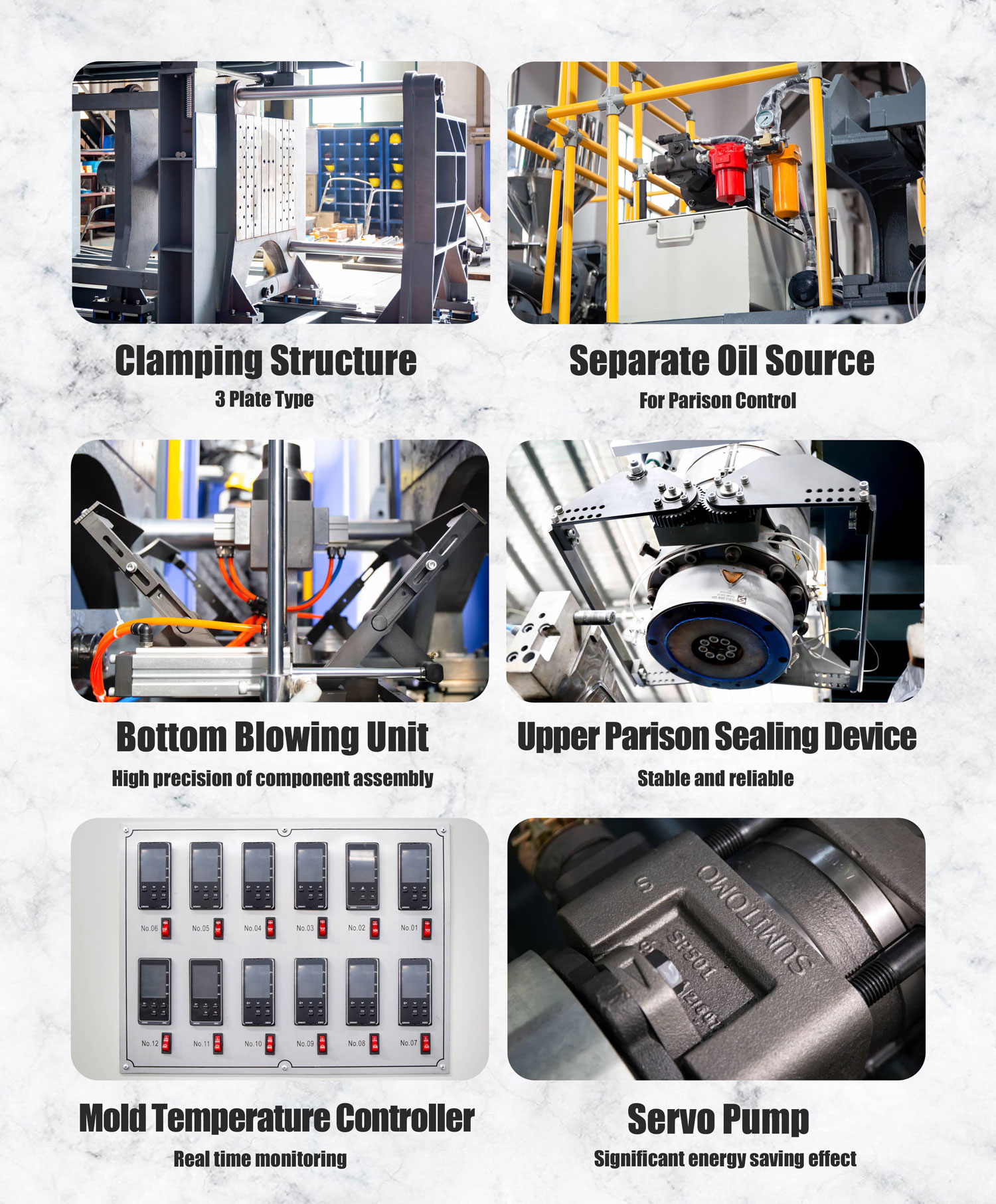

Die head:Excellent flow channel technology and precise machining accuracy, make the color change and material change more efficient. From dark to white, normally can be completed within 3hours. Much quicker than other suppliers. Save cost for you if you need to produce different color products.

Die head:Using 38CrMoALA, 42CrMo and other high-quality materials, made by precision machining and heat treatment.

Hydraulic system: proportional pressure control, equipped with famous brand hydraulic components, which are stable and reliable.

Application

FAQ

What can Tongda do for you?

If you’re interested in our machines, we welcome your visit at any time. seeing is believing, TONGDA MACHINERY with own manufacture and developed & research team & after-service team, we can supply you machine with good quality and good after-service.

How to guarantee our funds be safe?

We’re leading manufacturer of extrusion blow molding machine with over 23 years experience, and is the vice chairman of China Plastics Hollow Making Machinery Industry Association.

How to guarantee the delivery time?

For each order, we will create an exclusive order processing task list, which including machine model, order time, expected delivery time, exact configuration, mould testing requirement, important time points such as deadline for engineering to make drawing, deadline for assembling the machine. This list has been signed by the heads of each department for confirmation. And our Program Management Center and sales will always follow and update the status for each stage.

What should I do if the product is severely deformed?

1) Correct the abnormal shape of the die properly; 2) The product is not cooled enough, and the cooling water temperature needs to be lowered, or the cycle should be appropriately extended;
