HS-12L blow molding machine
This HS-12L servo hydraulic extrusion blow molding machine is our high level series machine. With hydraulic servo system to save the energy and run much faster. Adopted with elbow style clamping unit, makes the clamping force more uniform.
Can also be equipped with multi screws to produce multi layer products. And because of continuous type die head, adding view strip level line screw to produce bottles with level line is stable.
Technical Parameters
| MODEL | Units | HS-12L |
|---|---|---|
|
Max. Product volume |
L |
12 |
|
Output of HDPE |
kg/h |
120 |
|
Clamping force |
kn |
158 |
|
Screw diametre |
mm |
80 |
|
Screw heating power |
kw |
19 |
|
Blow pressure |
mpa |
0.7 |
|
Size of machine |
m |
5.21×2.62×3.2 |
播放视频

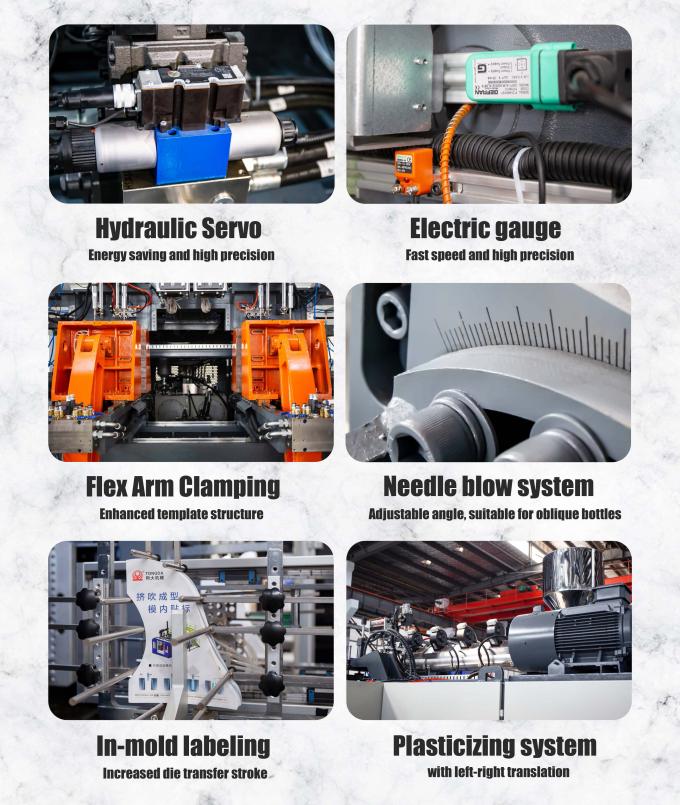

Product Details
HS series machine is our high level series extrusion blow molding machines. Equipped with hydraulic servo system.
Save energy and with more stable running. The clamping unit adopts elbow style so that with higher and uniform clamping force. Using proportional valve control the mold open & close, and linear guide rail, the movement for the mold open & close will be more stable and fast.

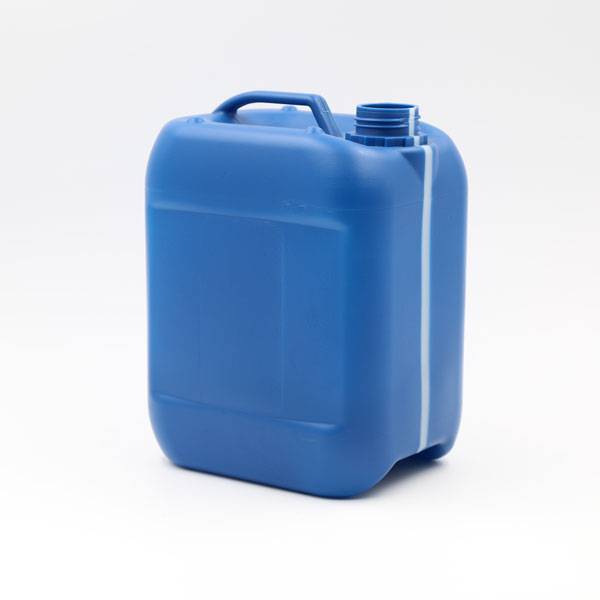

This machine is suitable for producing HDPE/PP jerry cans size below 12liters. It can be also equipped with multi head die-heads to make small bottles with higher output.
The main parts of this machine are designed and manufactured by ourself. We do the independent R&D and inspection. If you have other special requirements, we can provide customized services for you.
This machine is suitable for producing HDPE/PP jerry cans size below 12liters. It can be also equipped with multi head die-heads to make small bottles with higher output.
The main parts of this machine are designed and manufactured by ourself. We do the independent R&D and inspection. If you have other special requirements, we can provide customized services for you.
Application
FAQ
What can Tongda do for you?
If you’re interested in our machines, we welcome your visit at any time. seeing is believing, TONGDA MACHINERY with own manufacture and developed & research team & after-service team, we can supply you machine with good quality and good after-service.
How to guarantee our funds be safe?
We’re leading manufacturer of extrusion blow molding machine with over 23 years experience, and is the vice chairman of China Plastics Hollow Making Machinery Industry Association.
How to guarantee the delivery time?
For each order, we will create an exclusive order processing task list, which including machine model, order time, expected delivery time, exact configuration, mould testing requirement, important time points such as deadline for engineering to make drawing, deadline for assembling the machine. This list has been signed by the heads of each department for confirmation.
And our Program Management Center and sales will always follow and update the status for each stage.
What should I do if the product is severely deformed?
1) Correct the abnormal shape of the die properly;
2) The product is not cooled enough, and the cooling water temperature needs to be lowered, or the cycle should be appropriately extended;
